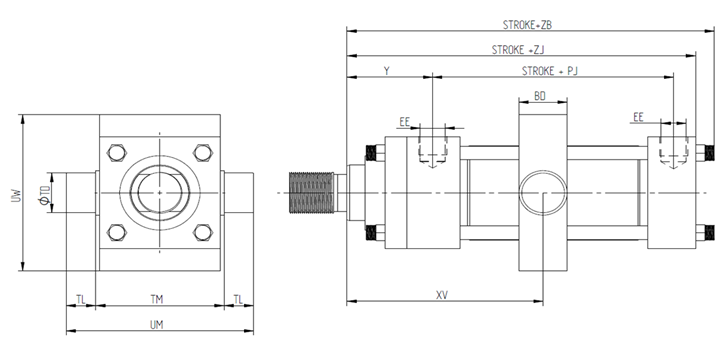

Model 09 Intermediate Trunnion Mount (ISO MT4)
The Intermediate Trunnion Mount is for longer stroke applications in which the machine member travels in a curved path in one plane.On special orders, the trunnion can be located anywhere along the body.This mount can be used both in compression (push) and tension (pull) applications.It is recommended that rigidly mounted pillow blocks with bearings at least as long as the trunnion pins be used. The pil¬low blocks should be installed as close to the shoulder of the trunnion as possible.
| Bore | BD | E | EE BSP | TD | TL | TM | UM | UW | Y | Stroke+ | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | XV | ZJ | ZB | ||||||||||
| 25 | 20 | 40 | 1/4" | 12 | 10 | 78 | 68 | 63 | 50 | 53 | DIMENSIONS TO BE SPECIFIED BY CUSTOMER | 114 | 121 |
| 32 | 25 | 45 | 1/4" | 16 | 12 | 55 | 79 | 75 | 60 | 56 | 128 | 137 | |
| 40 | 30 | 63 | 3/8" | 20 | 16 | 76 | 108 | 92 | 62 | 73 | 153 | 166 | |
| 50 | 40 | 75 | 1/2" | 25 | 20 | 89 | 129 | 112 | 67 | 74 | 159 | 176 | |
| 63 | 40 | 90 | 1/2" | 32 | 25 | 100 | 150 | 126 | 71 | 80 | 168 | 185 | |
| 80 | 50 | 116 | 3/4" | 40 | 35 | 127 | 191 | 160 | 77 | 93 | 190 | 212 | |
| 100 | 60 | 130 | 3/4" | 50 | 40 | 140 | 220 | 180 | 82 | 101 | 203 | 225 | |
| 125 | 73 | 165 | 1" | 63 | 50 | 178 | 278 | 215 | 86 | 117 | 232 | 260 | |
| 160 | 90 | 205 | 1" | 80 | 63 | 215 | 341 | 260 | 86 | 130 | 245 | 279 | |
| 200 | 110 | 245 | 1-1/4" | 100 | 80 | 279 | 439 | 335 | 98 | 165 | 299 | 336 | |
